If you’ve ever watched a skilled TIG welder in action, you’ve probably noticed their foot moving up and down on a pedal while they weld. That foot pedal isn’t just for show—it’s one of the most important tools in TIG welding.

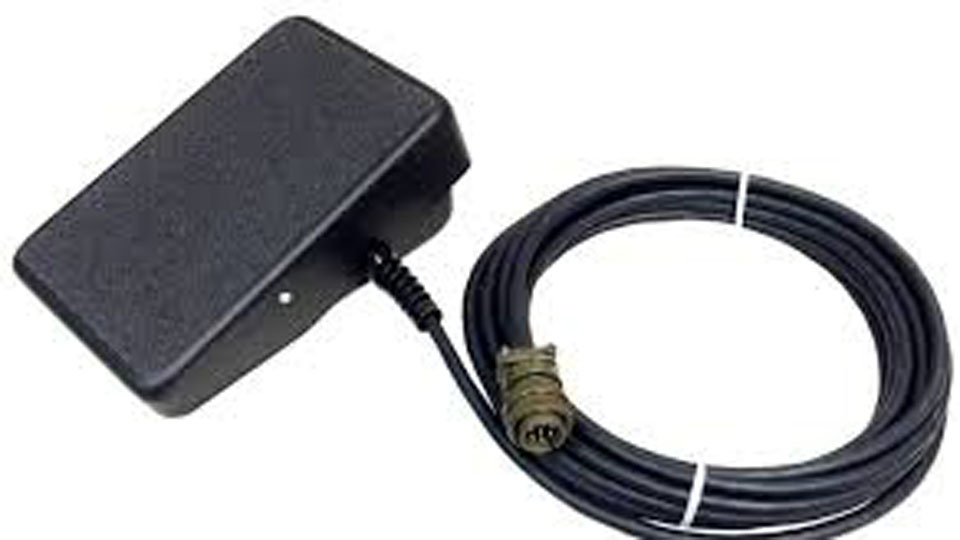

Image by r-techwelding.co.uk
I remember when I first started using a TIG welder with a foot pedal. At first, it felt awkward, like trying to learn how to drive a car with a manual transmission.
But once I got the hang of it, I realized how much control it gives over the welding process. It’s like having a gas pedal for your arc, letting you adjust the heat as you go.
Let’s dive deep into what the foot pedal does, how it works, and why it’s essential for high-quality TIG welding.
How Does the Foot Pedal Work in TIG Welding?
The foot pedal on a TIG welder controls the amperage (or heat) of the welding arc. Think of it like a car’s accelerator. Pressing down increases the amperage, making the arc hotter, while easing up reduces it.
This real-time control over heat is what makes TIG welding so precise. Instead of setting a fixed amperage on the machine and hoping for the best, the pedal lets you adjust heat instantly, giving you better control over the weld pool, penetration, and overall weld quality.
Why is a Foot Pedal Important for TIG Welding?
TIG welding is all about precision. Unlike MIG or stick welding, where you can get away with less control, TIG requires finesse. The foot pedal plays a huge role in that.
Fine-Tuned Heat Control
Different metals and thicknesses require different levels of heat. With a foot pedal, you can start at a low amperage, ramp up smoothly, and then ease off as needed. This prevents overheating and warping, especially on thin materials like aluminum and stainless steel.
Smooth Start and Stop
A common problem in welding is cratering—those little dips at the end of a weld. With a foot pedal, you can gradually taper down the heat instead of stopping suddenly. This helps avoid cracking and makes for a smoother, stronger finish.
Better Control Over Filler Metal
If you’re working with filler rod, a foot pedal makes it easier to control how much metal is melting. More heat means faster melting, while less heat gives you time to place the rod correctly.
Prevents Burn-Through
Ever burned a hole right through thin sheet metal? It happens when you apply too much heat too quickly. The foot pedal helps avoid this by letting you ease into the heat and reduce it when needed.
How to Use a Foot Pedal on a TIG Welder
Using a foot pedal in TIG welding takes practice, but once you get the feel for it, it becomes second nature. Here’s a simple step-by-step guide:
Set Your Machine
Before you start, set the maximum amperage on your TIG welder. This is the highest amount of heat you’ll be able to reach when you press the pedal all the way down.
Start with a Low Amperage
Press the pedal lightly to establish an arc. This helps prevent sudden heat spikes that could damage the workpiece.
Control the Heat as You Weld
As you move along the joint, use your foot to increase or decrease heat depending on what’s happening in the weld pool. If you see too much puddling, ease off the pedal. If the arc isn’t penetrating enough, press down a little more.
Gradually Taper Off
When you reach the end of your weld, don’t just let go of the pedal suddenly. Slowly reduce the amperage to allow the metal to cool evenly, which helps prevent cratering and cracking.
Foot Pedal vs Finger Control: Which is Better?
Some TIG welders prefer finger control instead of a foot pedal, especially when welding in tight spaces or awkward positions.
Here’s a comparison of both:
| Feature | Foot Pedal | Finger Control |
|---|---|---|
| Control | Very precise | Less precise |
| Ease of Use | Requires coordination | More intuitive for some welders |
| Best for | Bench work, controlled environments | Out-of-position welding, fieldwork |
For most applications, the foot pedal gives superior heat control, but if you’re welding in a position where using your foot isn’t practical (like on scaffolding), finger control might be the better option.
Common Mistakes When Using a Foot Pedal
Even experienced welders make mistakes with foot pedal control. Here are some things to watch out for:
Stomping on the Pedal
Pressing the pedal too fast can lead to an overly hot start, which can burn through the metal or create too large of a puddle. Always ease into the heat.
Not Adjusting the Heat as You Weld
Many beginners set a high amperage and keep it constant. But TIG welding isn’t like MIG—it requires constant adjustments. Learn to “feel” the weld and adjust the pedal accordingly.
Releasing the Pedal Too Fast
Suddenly lifting your foot off the pedal can cause craters, which can lead to cracks. Always taper off gradually.
Can You TIG Weld Without a Foot Pedal?
Yes, but it’s much harder. Some machines allow fixed amperage settings, meaning you set the heat and can’t adjust it while welding. This can work for some jobs, but it takes away the real-time control that makes TIG welding so precise.
If you’re welding in a position where a foot pedal isn’t practical, a finger-controlled amperage adjuster on the torch is a good alternative.
Choosing the Right Foot Pedal for Your TIG Welder
Not all TIG foot pedals are the same. If you’re looking to upgrade or replace yours, consider these factors:
Pedal Sensitivity
Some pedals are more responsive than others. A good-quality pedal will give you smooth control with no sudden jumps in amperage.
Comfort and Size
If you do a lot of welding, a wide, ergonomic pedal is easier to use over long periods.
Compatibility
Make sure the pedal matches your TIG welder’s make and model. Some machines have unique connection types.
Build Quality
A sturdy, metal-cased foot pedal will last longer than a cheap plastic one.
Conclusion
The foot pedal on a TIG welder is like a throttle for your arc. It lets you control heat in real-time, making it one of the most important tools for precision welding.
If you’re working with aluminum, stainless steel, or mild steel, mastering foot pedal control will improve your weld quality and consistency.
At first, it might feel awkward using both your hands and your foot at the same time, but with practice, it becomes second nature. The key is to start slow, learn to read the weld pool, and make smooth adjustments with your foot.
Once you get comfortable with a foot pedal, you’ll wonder how you ever welded without one!
FAQs
Can I TIG weld without a foot pedal?
Yes, but you lose real-time heat control, which makes it harder to weld thin or delicate metals.
Why does my foot pedal feel unresponsive?
It could be a dirty or worn-out potentiometer inside the pedal. Try cleaning or replacing it.
How much should I press the foot pedal when welding?
It depends on the thickness of the metal. Start low and gradually increase as needed.
What’s better for TIG welding, a foot pedal or a finger switch?
A foot pedal gives better heat control, but a finger switch is more convenient for out-of-position welding.
Can I upgrade my TIG foot pedal?
Yes! Many high-end foot pedals offer better sensitivity, smoother control, and ergonomic design for easier operation.
