TIG welding is a beautiful process. If you’ve ever used it, you know how clean and precise the welds can be. But one question I often get from new welders or those working in tight spaces is, “Can you TIG weld without a foot pedal?” The short answer is—yes, absolutely.
I’ve done it myself on several occasions when the foot pedal just wasn’t practical, and once you understand how, it becomes a very manageable process.

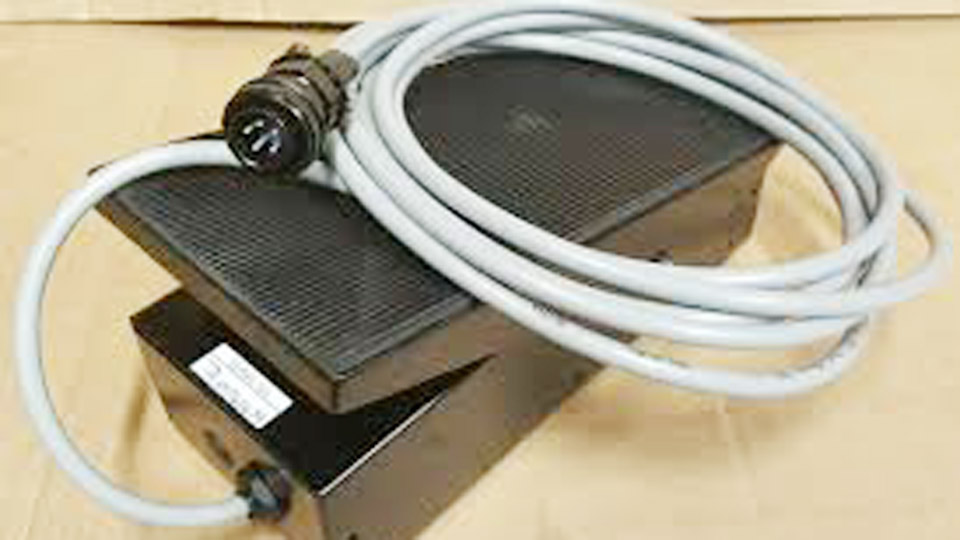

Image by ebay.co.uk
I’m going to walk you through everything you need to know about how to TIG weld without a foot pedal. If you’re working out in the field, under a car, or just don’t have the space for a pedal, you’ll learn practical techniques to keep control and still lay down clean, consistent welds. Explore how to weld smoothly and confidently—even when your foot’s not in the game.
What the Foot Pedal Actually Does
Before you remove the foot pedal from your setup, it’s important to know what role it plays. The foot pedal in TIG welding is like the gas pedal in your car.
It controls the amount of amperage, or welding heat, in real time. That means you can start the weld hot, and then back off the heat as you move, which helps prevent burn-through or overheating thin metals.
But guess what? You don’t need it to TIG weld. It’s a great tool, yes, but there are other ways to control amperage and get great results. TIG machines today often come with different control options, like fixed amperage settings or torch-mounted switches.
If you understand how your machine works and plan your welds smartly, you can weld without missing that pedal at all.
Different Ways to Control Amperage Without a Foot Pedal
The key to TIG welding without a foot pedal is learning how to manage amperage in other ways. There are two popular options most welders use:
Using a Torch Switch or Button
Some TIG torches come with a finger or thumb switch built right into the handle. This lets you turn the arc on and off without needing a foot pedal. Depending on your machine, the switch might have extra features, like “momentary” or “latching” modes.
- Momentary mode means the arc only stays on while you hold the button.
- Latching mode means you press once to start the arc, and press again to stop it.
This gives you hands-on control without worrying about stepping on anything. It’s especially useful when welding in awkward positions—like under a car or inside a tank—where you just can’t reach a pedal anyway.
Using a Fixed Amperage Setting
If your machine lets you set a fixed amperage, you can choose a consistent heat level and weld the entire joint at that power. This means you won’t be adjusting on the fly, but with a little practice and planning, it works well.
For example, if you’re welding mild steel and know your joint needs around 90 amps, just set that value before you start. You’ll want to focus more on travel speed and torch angle to control heat input as you move along the weld.
This method is simple, and sometimes that’s exactly what you need when precision isn’t critical or when you’re working with thicker materials.
Preparing for a Weld Without a Foot Pedal
If you want a smooth experience without a foot pedal, preparation becomes even more important. Since you won’t be able to instantly back off the amperage, your torch technique and pre-planning matter a lot.
Here’s what I usually do before I strike the arc:
Choose the Right Amperage Ahead of Time
Set your amperage based on the metal thickness. It’s better to be slightly lower than too high, especially if you’re not experienced yet. A general rule of thumb I follow is about 1 amp per thousandth of an inch of material thickness.
| Material Thickness (inches) | Recommended Amperage (Amps) |
|---|---|
| 1/16″ (0.0625″) | 60–70 |
| 1/8″ (0.125″) | 100–130 |
| 1/4″ (0.250″) | 200+ |
Fit-Up and Cleanliness
Make sure your metal is clean and the joint is tight. TIG welding doesn’t like rust, oil, or gaps. When I weld without a pedal, I pay extra attention to this because I won’t be able to compensate for impurities or gaps mid-weld.
Tungsten Type and Electrode Prep
Use the right tungsten for the job. I usually go with 2% lanthanated for both AC and DC welding—it holds up well and gives a steady arc. Sharpen it properly, especially if you’re welding on DC, since a pointed tip helps with arc focus and penetration.
Torch Control Techniques
Now that you’ve got your machine set and your metal ready, let’s talk about how to control the torch since you won’t be adjusting amperage while welding.
Control Heat with Travel Speed
One of the most effective ways to manage heat is simply by moving faster or slower. If you see your puddle getting too big, pick up the pace. If you’re not getting enough fusion, slow it down slightly. It sounds basic, but with practice, it becomes second nature.
Taper Off at the End
One challenge of not using a foot pedal is ending the weld smoothly. Normally, you’d back off the amperage gradually.
Without a pedal, I like to angle the torch slightly away from the work at the end of the weld and move quickly to reduce heat input, then lift off cleanly.
Some machines also allow you to set an “end current” that tapers down automatically when you let go of the switch. If your TIG welder has this feature, definitely use it. It’ll help reduce craters and cracks at the weld’s end.
Use Pulse Mode If Available
If your TIG welder supports pulse mode, this is a great substitute for pedal control. In pulse mode, the machine switches between high and low amperage automatically. This gives the metal time to cool slightly between pulses and helps reduce heat buildup.
Pulse mode is especially helpful on thin stainless or aluminum, where controlling heat input is critical.
Here’s a quick guide to some common pulse settings:
| Parameter | Recommended Starting Point |
|---|---|
| Peak Amps | Same as set amperage |
| Background Amps | 30–50% of peak |
| Pulse Frequency | 1–2 Hz for manual pace |
| Pulse Width | 30–50% |
You can tweak these settings based on your material and how fast you want to travel.
When to Consider Welding Without a Pedal
There are several situations where ditching the foot pedal actually makes things easier:
- Out-of-position work: Overhead, vertical, or cramped areas
- Field work: When you’re on a ladder, scaffold, or outdoors
- Automotive and chassis welding: Under vehicles or inside engine bays
- Pipe welding: Where space is tight and mobility matters
- Bench work with repetitive welds: Where you’ve dialed in the perfect fixed amperage
In these cases, not having a foot pedal isn’t a handicap—it’s just a different way of working. As long as you understand how to manage the arc, you can get results just as good.
Tips for Getting Comfortable Without a Pedal
I’ll be honest—if you’ve always used a foot pedal, welding without one can feel strange at first. But I’ve got a few tips that really helped me when I was learning:
- Practice with scrap metal at fixed amperage to understand how your puddle behaves.
- Get used to using your torch switch—try different modes and see what feels natural.
- Start on thicker metals so you have more heat tolerance.
- Use pulse mode if your machine offers it—it’s like training wheels for pedal-free welding.
- Set up your work area smartly to give yourself room and avoid strain.
Give it a few tries, and before long you won’t even miss that foot pedal.
Common Mistakes to Avoid
Let me save you from a few headaches by sharing mistakes I’ve made (so you don’t have to):
- Setting amperage too high: This leads to warping, blow-through, or ugly welds.
- Starting cold: If you’re welding aluminum, for example, starting with too little heat makes a mess. Know your material.
- Stopping too quickly: Without tapering off at the end, you can get craters or cracks. Use a post-flow timer or taper your arc manually.
- Not cleaning the metal: TIG is very sensitive. Clean everything like you’re prepping for paint.
- Holding the switch awkwardly: Find a grip that feels natural. Some people use their index finger, others their thumb.
Pros and Cons of TIG Welding Without a Foot Pedal
Let’s break it down clearly:
| Pros | Cons |
|---|---|
| Great for tight or awkward spaces | Less real-time amperage control |
| Less gear to carry or trip over | Harder to adjust heat on thin materials |
| Can weld overhead or vertical more easily | May need more prep and torch control |
| Works well with pulse settings | Tricky to end welds cleanly without taper |
Conclusion
Welding without a foot pedal might sound like a limitation, but honestly, it opens up a new level of flexibility.
Once I learned how to control heat with my travel speed, pulse settings, and torch movement, I realized I could weld just as well—and sometimes even better—without relying on a foot pedal.
If you’re working in the field, on cars, or anywhere a pedal just doesn’t fit, don’t be intimidated. Start with clean metal, use a good fixed amperage, and let your torch do the talking. With a little practice, you’ll feel just as confident as you do with your foot on the pedal.
And who knows? You might even start to prefer it.
Frequently Asked Questions
Can you TIG weld aluminum without a foot pedal?
Yes, but it’s trickier. Aluminum needs precise heat control. Use pulse mode if your machine has it, or practice on scrap to dial in your fixed amperage.
Is a torch switch better than a foot pedal?
It depends on the job. A torch switch is great for tight spaces or field work. For bench work, a pedal offers better control.
Do I need a special TIG welder to weld without a foot pedal?
No, but your machine should let you set a fixed amperage or use a switch input. Most modern TIG machines support this.
Can I still do fine, detailed welds without a pedal?
Absolutely, with practice. Use thinner filler rod and control your travel speed carefully.
How do I avoid overheating the metal without pedal control?
Lower your amperage, move a bit quicker, and use pulse mode if possible. Also, let the metal cool between passes.
