When I first started welding, spatter was one of the most frustrating things I had to deal with. No matter how careful I was, those tiny molten metal droplets would land everywhere—on my workpiece, my gloves, and even my face shield.
It wasn’t just messy; it made my welds look rough and unprofessional. I learned that welding spatter isn’t just something you have to accept—you can reduce it or even avoid it altogether with the right techniques.

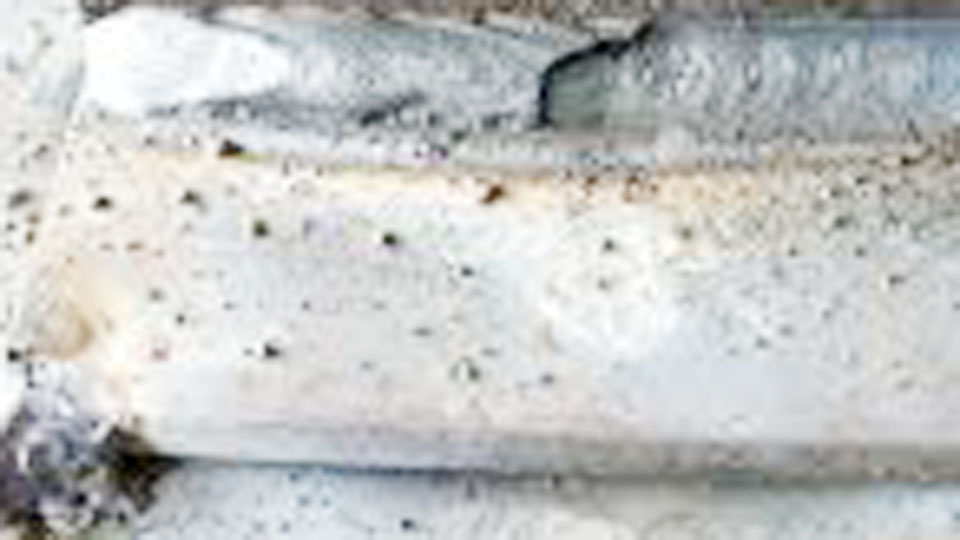

Photos by lders.tokentools
If you’ve ever struggled with spatter in welding, I know exactly how you feel. So, let’s talk about what causes it and how to minimize it for cleaner, more efficient welds.
Spatter in Welding
Spatter is made up of small molten metal droplets that are expelled from the weld during the welding process.
These droplets can cool and harden on surrounding surfaces, making cleanup a pain. Spatter happens in almost all welding methods, but it’s most common in MIG (GMAW) and flux-cored (FCAW) welding.
While spatter is annoying, it’s usually a sign that something isn’t right with your welding process. It’s often caused by poor technique, incorrect settings, or the wrong equipment. The good news is, once you understand the causes, you can take steps to prevent it.
Common Causes of Welding Spatter
To eliminate spatter, you need to know what’s causing it. Here are the most common reasons:
- Too High or Too Low Voltage – Incorrect voltage settings can lead to an unstable arc, increasing spatter.
- Wrong Wire Speed – If the wire feed is too fast, excess filler material enters the weld pool, causing more spatter.
- Poor Shielding Gas Coverage – If the shielding gas flow is too low or inconsistent, the weld pool can become unstable.
- Dirty Workpiece – Rust, oil, and dirt on the metal surface can create excessive spatter.
- Incorrect Stick-Out Length – Holding the electrode too far or too close can disrupt the arc and cause metal droplets to scatter.
- Wrong Polarity – Using the wrong polarity setting on your machine can cause unstable arc performance, leading to spatter.
- Bad Welding Technique – Moving too fast, too slow, or at the wrong angle can contribute to excessive spatter.
How to Avoid Welding Spatter
Now that we know the main causes, let’s go over how to prevent spatter and keep your welds clean and professional.
Adjust Your Voltage and Amperage Correctly
Your welding machine settings play a huge role in how much spatter you get. If the voltage is too high, the arc becomes unstable. If it’s too low, you’ll get an erratic arc with a lot of spatter.
How to fix it:
- Find the recommended voltage and amperage for your wire diameter and material thickness.
- If you see excessive spatter, fine-tune your settings by increasing or decreasing voltage in small increments.
- Watch the arc—if it’s smooth and stable, your settings are correct.
Control Your Wire Feed Speed
For MIG welding, the wire feed speed is crucial. If it’s too high, the wire pushes too much metal into the weld pool, leading to spatter. If it’s too low, you get an inconsistent arc.
How to fix it:
- Start with the recommended wire speed for your material and welding process.
- Reduce the speed slightly if you notice too much spatter.
- Keep your wire speed and voltage in balance for a stable arc.
Use the Right Shielding Gas and Flow Rate
Shielding gas protects the weld pool from contamination. If your gas flow is too low, oxygen can mix with the weld, causing spatter. Too high, and you might create turbulence, which also leads to spatter.
Best practices:
- For MIG welding on mild steel, use 75% argon / 25% CO₂ for cleaner welds.
- Pure CO₂ produces more spatter, so avoid it unless necessary.
- Set your gas flow rate between 20-25 CFH (cubic feet per hour) for optimal shielding.
- Ensure there are no leaks in your gas hose or regulator.
Keep Your Workpiece Clean
A dirty workpiece is a major cause of spatter. Rust, oil, grease, and paint contaminate the weld pool, leading to excessive spatter and porosity.
How to fix it:
- Wire brush the surface before welding.
- Use a grinder to remove rust or old paint.
- Wipe off oil or grease with acetone or a degreaser.
Maintain Proper Electrode Stick-Out
Stick-out refers to the distance between the tip of your welding wire and the workpiece. If it’s too short, you might get excessive spatter from a concentrated arc. Too long, and the arc becomes unstable.
Best practices:
- For MIG welding, keep the stick-out between ⅜ inch to ½ inch.
- For flux-cored welding, a longer stick-out (about ¾ inch) is ideal.
- Always keep the nozzle clean to avoid buildup.
Use the Correct Polarity
Polarity affects how the arc behaves. Using the wrong polarity setting can lead to spatter, poor penetration, and an unstable arc.
Correct polarity for welding processes:
| Welding Process | Polarity Setting |
|---|---|
| MIG (Solid Wire) | DCEP (+) |
| Flux-Cored (Gasless) | DCEN (-) |
| Stick Welding | Usually DCEP (+), but varies |
If you’re seeing too much spatter, double-check your machine’s polarity settings and adjust accordingly.
Improve Your Welding Technique
Even if your machine is set up correctly, bad technique can still cause spatter. Here’s how to improve your technique:
- Maintain a steady hand – Shaky movements create an unstable arc.
- Hold the torch at the right angle – A 10-15° angle is ideal for MIG welding.
- Use a smooth, even travel speed – Moving too fast can create spatter.
- Practice on scrap metal before working on your actual project.
Use Anti-Spatter Spray
If you still get some spatter, anti-spatter spray can help. It prevents spatter from sticking to your workpiece and nozzle, making cleanup easier.
- Apply a light coating to your work area and welding nozzle.
- Wipe off excess spray before welding to avoid contamination.
- Choose silicone-free anti-spatter sprays for better paint adhesion after welding.
Conclusion
Spatter might seem like an unavoidable part of welding, but with the right adjustments, you can significantly reduce it. A stable arc, proper machine settings, and good welding techniques all play a role in creating smooth, clean welds.
If you’re dealing with spatter, start by checking your voltage, wire speed, and gas flow. Keep your workpiece clean, hold the torch at the right angle, and make sure you’re using the correct polarity. These small changes can make a big difference.
The more you practice, the better your welds will get. So, take your time, experiment with different settings, and soon you’ll be welding with minimal spatter and professional-looking results.
FAQs
Why do I get so much spatter when MIG welding?
Spatter is usually caused by incorrect voltage, high wire feed speed, or poor gas coverage. Adjust your settings and check for contamination.
Does gas type affect welding spatter?
Yes, pure CO₂ causes more spatter than a 75% Argon / 25% CO₂ mix, which produces cleaner welds.
Can I remove welding spatter easily?
Yes, you can remove spatter using a chipping hammer, wire brush, or grinder. Using anti-spatter spray helps prevent buildup.
Will using lower amperage reduce spatter?
Not always. If amperage is too low, you may get an unstable arc, which increases spatter. Finding the right balance is key.
Is flux-cored welding more prone to spatter than MIG welding?
Yes, flux-cored welding generally produces more spatter than MIG, but using the correct stick-out length and polarity can help reduce it.
